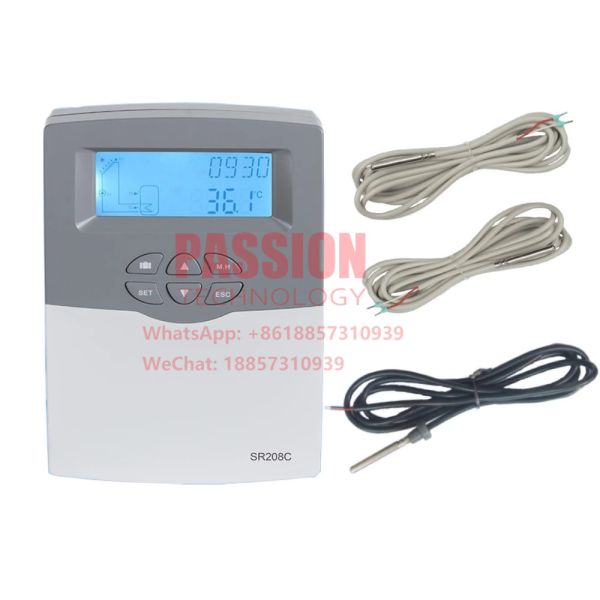

SR208C Automatical Controller Split Pressure Solar Water Heater WIFI Controller
Introduce:
A BRIEF DESCRIPTION
Temperature measurement accuracy:0.1
Conventional/HE pump both available on
APPLICATIONS CAPACITY
Max.number of collectors:1
Max.number of storage tanks:1
Max.number of relays:2
Max.number of sensors:3
Max.number of visualization application system:1
TECHNICAL DATA
Size of Controller:178mm x120mm x43mm
Power supply:AC100-240V,50-60Hz. .
Power consumption: < 2.5W
Accuracy of temperature measuring: ± 0.1oC
Range of collector temperature measuring: -10oC ~220oC
Range of tank temperature measuring: 0oC ~110oC
Suitable power of pump: 1 pump possible to be connected, output power < 300W .
Suitable power of HK (backup heating): 1pc ˂500W .
Inputs: 3 sensors,
1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC),
2pcs*NTC10K, B3950 sensor (≤ 135oC) for tank, (PVC cable ≤105oC),
Outputs:2 relays, for circulation pump and backup heating
Ambient temperature:-10oC ~ 50oC.
Water proof grade: IP41
Main technical data:
Size of Controller:178mm x120mm x43mm
Power supply:AC100-240V50-60Hz. .
Power consumption: < 2.5W
Accuracy of temperature measuring: ± 0.1oC
Range of collector temperature measuring: -10oC ~220oC
Range of tank temperature measuring: 0oC ~110oC
Suitable power of pump: 1 pump possible to be connected output power < 300W .
Suitable power of HK (backup heating): 1pc ˂500W .
Inputs: 3 sensors
1pcs*Pt1000 sensor (≤500oC) for collector (silicon cable≤280oC)
2pcs*NTC10K B3950 sensor (≤ 135oC) for tank (PVC cable ≤105oC)
Outputs:2 relays for circulation pump and backup heating
Ambient temperature:-10oC ~ 50oC.
Water proof grade: IP41
Main functions:
AH Afterheating/thermostat
Password protection
LOAD Tank heating
OCEM Collector emergency shutdown
OCCO Collector cooling
OCMI Collector minimum temperature
OCFR Antifreeze
OTCO Tube collector
PUMP Pump control mode
OSYC System cooling
OSTC Tank cooling
MAN Manual mode
BLPR Blocking protection
OTDI Thermal Disinfection
UNIT C-F switch
BEEP beeper fault warning
Memory function
Screen protection
Trouble checking
System:
Holiday function
The holiday function is used for operating the system when no water consumption is expected, e. g.
during a holiday absence. This function cools down the system in order to reduce the thermal
load.When bottom temperature of tank below down 35oC,the solar pump is deactivate.Manual of SR208C intelligent controller
Activate/deactivate this function:
►Press “ ” button for 3 seconds, “HDAY 05” displays on the screen
►Press “▲/▼”, to adjust holiday’s days, adjustable range 0-99 days
►Press “ ” for 3 seconds again, to adjust holiday’s days to 0,
►Press “ESC” to exit, holiday function is closed
Note:When you return from holiday, please deactivate this function in time.
WIFI Remote Control is available for SR208C WIFI only
Flat Panel Split Solar Water Heater
with Double Coils PTS-F2
Flat Panel Split Solar Water Heater
with Double Coils PTS-F2 |
| Model | PTS-F2-15 | PTS-F2-20 | PTS-F2-25 | PTS-F2-30 | PTS-F2-40 | PTS-F2-50 | PTS-F2-100 |
| Flat Panel Solar Collector | Core material | Copper |
| Coating | Copper aluminum cover coating of Blue Titanium Absorption rate: α=0.95 Reflection rate ε=0.04. |
| Base plate | Marine-grade H3004 Aluminum, toughnessH32 Thickness 0.7mm |
| Glass of panel | Special glass for panel With ANS1297-1-1975, BS6206A and JIS R3206 standards; toughness with AS2208-1978 and federal standards of United States. |
| Panel Insulation | Bottom with fiberglass insulation ,Thickness 60mm,Density 20kg/m³; Side-thickness insulation:13mm; Density 23kg/m³; Thermal properties: R1.0 Thermal conductivity : 0.059W/m． |
| Quantity (PCS) | 1 | 1 | 2 | 2 | 3 | 3 | 6 |
Water
Tank | Capacity | 150L | 200L | 250L | 300L | 400L | 500L | 1000L |
| Top Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*20 | Φ19*30 |
| Bottom Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*25 | Φ16*30 | Φ19*40 |
| Polyurethane Foaming (mm) | 55 | 50 | 50 | 50 | 60 | 60 | 100 |
| Outer Tank | Color Steel Plate/ Enamal White |
| Φ470/0.5 | Φ550/0.5 | Φ580/0.5 | Φ580/0.5 | Φ700/0.5 | Φ700/0.5 | Φ1000/0.5 |
| Inner Tank | SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar |
| Φ360/1.2 | Φ450/1.5 | Φ480/1.5 | Φ480/1.5 | Φ580*2.0 | Φ580*2.0 | Φ800/2.5 |
| Electrical Heater | 1500W | 1500W | 2000W | 2000W | 2000W | 2000W | 4000W |
| Working Station | SR961S (Including controler & WILO PUMP) |
| Expansion Tank | 8L | 8L | 8L | 8L | 12L | 12L | 24L |
Heat Pipe Split Solar Water Heater
with Double Coils PTS-H2
Heat Pipe Split Solar Water Heater
with Double Coils PTS-H2 |
| Model | PTS-H2-15 | PTS-H2-20 | PTS-H2-25 | PTS-H2-30 | PTS-H2-40 | PTS-H2-50 | PTS-H2-100 |
| Heat Pipe Solar Collector | Tubes (PCS) | 15 | 20 | 25 | 30 | 40 | 50 | 100 |
| Three Target Vacuum Tube | Diameter/Length: φ58mm/1800mm; High boron and silicon content 3.3; Structure:Gradual change SS-AL-Nx/Cu selective absorption coating; Vacuum Degree:P<=5*10-3; |
| Heat Pipe | Condesor: φ14*70mm; Thickness: 0.5mm ; Material: red copper TU1+water; Transfer Power:>=150W; Working Pressure:4Mpa; Welding Pressure:4Mpa; |
| Outer Shell/Bracket - Alluminum Alloy | Insulation Layer - Rock wool | Dustproof Rubber - EPDM | Dsily Heat Gain - 8.5MJ/m² |
| Inlet/outlet - 22mm/3/4" | Tailstock - ABS | Temperature - 250 °С | Work Pressure - 0.6MPa |
| Contour Area | 2.32m² | 3.10m² | 3.78m² | 4.52m² | 6.20m² | 7.56m² | 15.12m² |
| Aperture Area | 1.43m² | 1.89m² | 2.36m² | 2.83m² | 3.8m² | 4.72m² | 9.44m² |
| Absorption Area | 1.22m² | 1.62m² | 2.04m² | 2.43m² | 3.24m² | 4.06m² | 8.16m² |
| Quantity (PCS) | 15tubes*1 | 20tubes*1 | 25tubes*1 | 30tubes*1 | 20tubes*2 | 25tubes*2 | 25tubes*4 |
Water
Tank | Capacity | 150L | 200L | 250L | 300L | 400L | 500L | 1000L |
| Top Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*20 | Φ19*30 |
| Bottom Copper Coil (mm*M) | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*15 | Φ16*25 | Φ16*30 | Φ19*40 |
| Polyurethane Foaming (mm) | 55 | 50 | 50 | 50 | 60 | 60 | 100 |
| Outer Tank | Color Steel Plate/ Enamal White |
| Φ470/0.5 | Φ550/0.5 | Φ580/0.5 | Φ580/0.5 | Φ700/0.5 | Φ700/0.5 | Φ1000/0.5 |
| Inner Tank | SUS 304 2B , Working pressure-6 bar, Test pressure-12 bar |
| Φ360/1.2 | Φ450/1.5 | Φ480/1.5 | Φ480/1.5 | Φ580*2.0 | Φ580*2.0 | Φ800/2.5 |
| Electrical Heater | 1500W | 1500W | 2000W | 2000W | 2000W | 2000W | 4000W |
| Working Station | SR961S (Including controler & WILO PUMP) |
| Expansion Tank | 8L | 8L | 8L | 8L | 12L | 12L | 24L |
